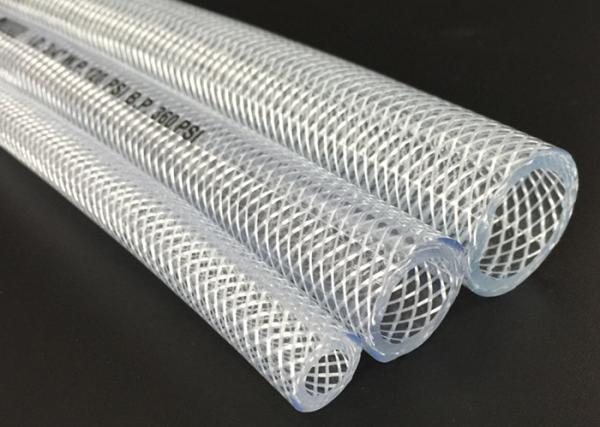

non-toxic odorless PVC transparent fiber braided hose / tubing / pipe with ROHS
| Inner Diameter: | 4mm-76mm |
| Color | Clear, Blue, Orange, Yellow, Red |
| Quality Grade: | Food Grade, No Toxic Grade, No Smell Grade |
| length | 30m/50m/100m or customized |
| features | Durable,High Pressure,Weather Resistant |
| Application: | Plant, Farm, Construction, Mining And Family |
PVC clear braided hose has PVC as the internal and external walls and the fiber in the middle as the strengthening layer. It has the advantages of mid-pressure-resist, pull-resist, corrosion-resist, beautiful outlook, soft, light and lasting; it is really the best choice for transporting air, water, gas and oil under the temperature conditions from zero to 65degree above zero.
Characteristics:
It is flexible, transparent, durable, non-toxic, without odor, anti-erosion and adaptable to high pressure condition. By adding colorful symbol lines on the surface of the hose, it looks more beautiful.
Application:
The braided hose is used for conveying water, oil, gas under normal working condition in the factory, farm, ship, building and family. The hose used for foodstuffs is made of special materials. It is light, flexible, durable, non-toxic, odor, transparent. It can also be used for conveying milk, beverage, distilled liquor, beer, jam and other foods in vending machines, ice machine and refrigerators etc.
Material:
100% virgin PVC materials, Non-toxic, Non-smell.
High tensile polyester yarn. Good quality material makes light weight, good flexibility, easy handling.
Soft and flexible. Anti-abrasion, Anti-corrosion, Anti-aging
Packing: After finishing the hose production, we will pack the hose.
In general, the packing will use woven bag and plastic film.
Special packing is available according to customers' requirements.
Specification:
| Inner Diameter | Wall Thickness | Weight | W.P.(at 23℃) | Std Length |
| inch | mm | inch | mm | kg/m | bar | psi | m | ft |
| 1/8 | 4 | 0.078 | 2.0 | 0.051 | 12 | 175 | 100 | 300 |
| 13/64 | 5 | 0.098 | 2.5 | 0.076 | 12 | 175 | 100 | 300 |
| 1/4 | 6 | 0.098 | 2.5 | 0.087 | 12 | 175 | 100 | 300 |
| 5/16 | 8 | 0.098 | 2.5 | 0.105 | 10 | 145 | 100 | 300 |
| 3/8 | 10 | 0.098 | 2.5 | 0.130 | 10 | 145 | 100 | 300 |
| 1/2 | 12 | 0.118 | 3 | 0.185 | 9 | 130 | 100 | 300 |
| 5/8 | 16 | 0.118 | 3 | 0.230 | 8 | 116 | 100 | 300 |
| 3/4 | 19 | 0.118 | 3 | 0.270 | 6 | 87 | 100 | 300 |
| 7/8 | 22 | 0.118 | 3 | 0.305 | 5 | 73 | 100 | 300 |
| 1 | 25 | 0.118 | 3 | 0.340 | 4 | 60 | 100 | 300 |
| 1-1/4 | 32 | 0.157 | 4 | 0.590 | 4 | 60 | 100 | 300 |
| 1-1/2 | 38 | 0.157 | 4 | 0.690 | 4 | 60 | 50 | 150 |
| 1-3/4 | 45 | 0.217 | 5.5 | 1.140 | 4 | 60 | 50 | 150 |
| 2 | 50 | 0.236 | 6 | 1.380 | 4 | 60 | 50 | 150 |
| 2-1/2 | 64 | 0.276 | 7 | 2.030 | 4 | 60 | 50 | 150 |
| 3 | 76 | 0.630 | 8 | 2.750 | 4 | 60 | 50 | 150 |
